嵌入式系统中的 eMMC 与 NAND Flash 对比：架构、取舍与选型指南

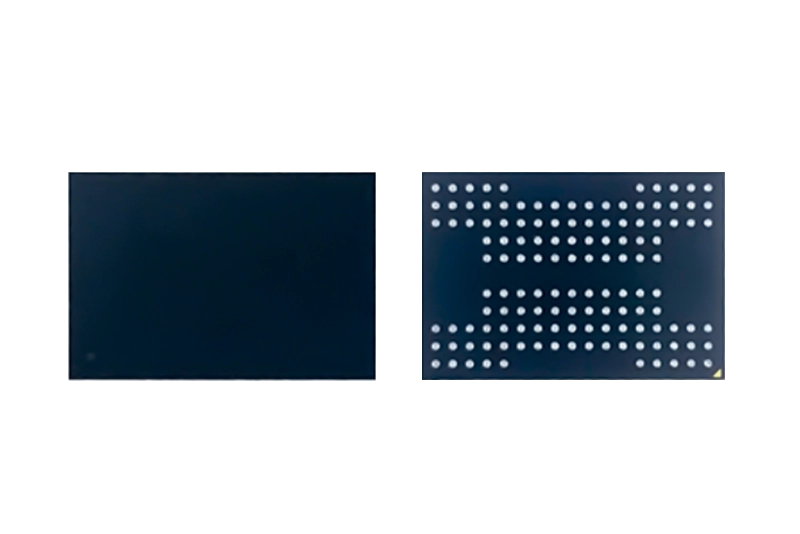

eMMC is a managed NAND solution: it integrates raw NAND flash with a controller that handles wear leveling, bad block management, ECC, and a standardized eMMC 5.1 host interface. Raw NAND flash requires the host SoC to implement these functions in software or FPGA logic. eMMC simplifies design and shortens time-to-market; raw NAND offers lower BOM cost at scale and direct control over the flash.

Choose eMMC when you want a validated storage subsystem with a standard interface, faster firmware bring-up, and lower engineering risk - typical for embedded Linux/Android boards, HMI, and gateways. Choose raw NAND when volume is high enough to amortize controller/FPGA development and you need to optimize cost or implement a custom NAND management scheme.

At high volume, raw NAND plus an in-house or FPGA controller can have a lower unit cost than a managed eMMC package, because you remove the dedicated controller die and license fees. The trade-off is engineering cost: you must implement wear leveling, ECC, bad-block handling, and power-loss management yourself, which adds months of development and validation effort.

eMMC handles wear leveling, bad block management, ECC, and read/write reordering inside the device controller, transparent to the host. With raw NAND, the host must perform these functions, typically via an FTL (flash translation layer). The practical difference: eMMC guarantees consistent endurance behavior across the rated TBW with much less host-side engineering.

Yes. Industrial-grade eMMC devices are rated for -40C to +85C operation. 龙瑆 offers industrial eMMC (TLC) and pSLC eMMC options with wide-temperature support, including GJB-standard variants rated to -55C to +105C for defense and aerospace applications. Confirm the specific ordering PN and datasheet for your target environment.
